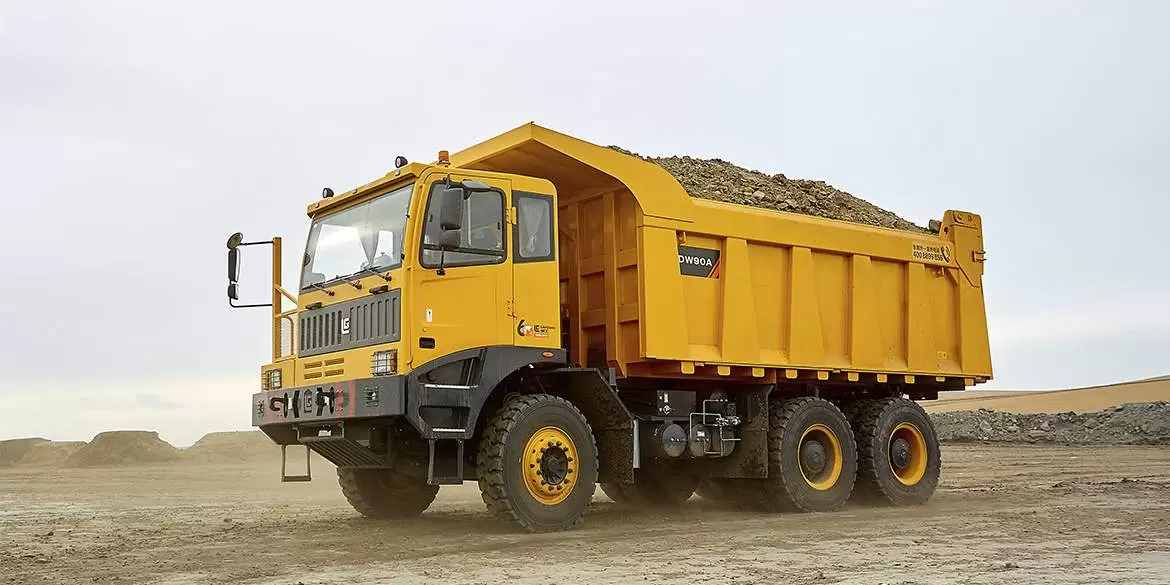

DW90A
PRODUCT FEATURES
- Hydraulic steering system for reduced effort during operation.
- The lift system saves time and increases production.
- The center of gravity acts at a point that provides more stable operation at the work site.
- The cab is spacious and less noisy with a wider view.
- Strong powertrain, with world-class component suppliers.
- Safe and reliable braking system and alarm system.
- Longitudinal leaf spring suspension system with excellent impact absorption.
Previous
Next
SPECIFICATION
Operating weight
31.000 kg
Rated load
59.000 kg
Gross Machine Weight
90.000 kg
Struck Capacity
32 m³
Heaped capacity (SAE 2:1)
38 m³
Engine Model
Yuchai YC6K250
Emission regulation
Tier 3 / Stage III
Rated power
382 kW (512 hp)
Transmission Model
Allison RS_PR 4800
Type
Automatic
Maximum travel speed
45 km/h
Dimension
9.170 x 3.450 x 3.986 mm
Tire
14,00 R25
