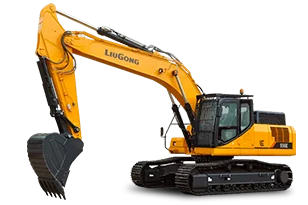

952E HD
PRODUCT FEATURES
- The 952E is powered by the latest Cummins QSM11 engine with a rated net power of 260 kW (349 hp / 353 ps) @ 2,000 rpm in compliance with EU Stage IIIA emission standards.
- The 952EHD features a tougher, reinforced heavy duty boom and arm built from high-strength tensile steel, with castings and forgings in high stress areas for heavy-duty performance and maximum uptime.
- ROPS (Roll Over Protection System) and FOPS (Falling Object Protection System) safeguard your most important asset: your operator in the toughest environment.
- Visibility is key to protecting your operator and workers on site. The large glass surface area, spacious cab, combined with the rear-view camera, provides an extraordinary view of the 952EHD’s surroundings.
- Inspection parts, filters and water separator are conveniently located.
Previous
Next
SPECIFICATION
Operating weight
39.500-51.000
Engine power
280 kW (375hp)@2000 rpm
Bucket capacity
3,2 m³
Maximum travel speed (High)
5,3 km/h
Maximum swing speed
8,5 rpm
Arm breakout force
287 kN
Bucket breakout force
310 kN
Shipping length
11.515 mm
Shipping height
3.810 mm
Boom
6500 mm
Arm
2.550 mm
Digging reach
10.625mm
Digging reach on ground
10.338 mm
Digging depth
6.521 mm
Vertical wall digging depth
5.240 mm
Cutting height
7.038 mm
Dumping height
7.265 mm
Minimum front swing radius
4.645 mm
Model
Cummins QSM 11
Emission
Tier 3 / Stage III
System maximum flow
2 x 380 L/min
System pressure
34,3 Mpa / 37.2 Mpa Boost
