9027F
PRODUCT FEATURES

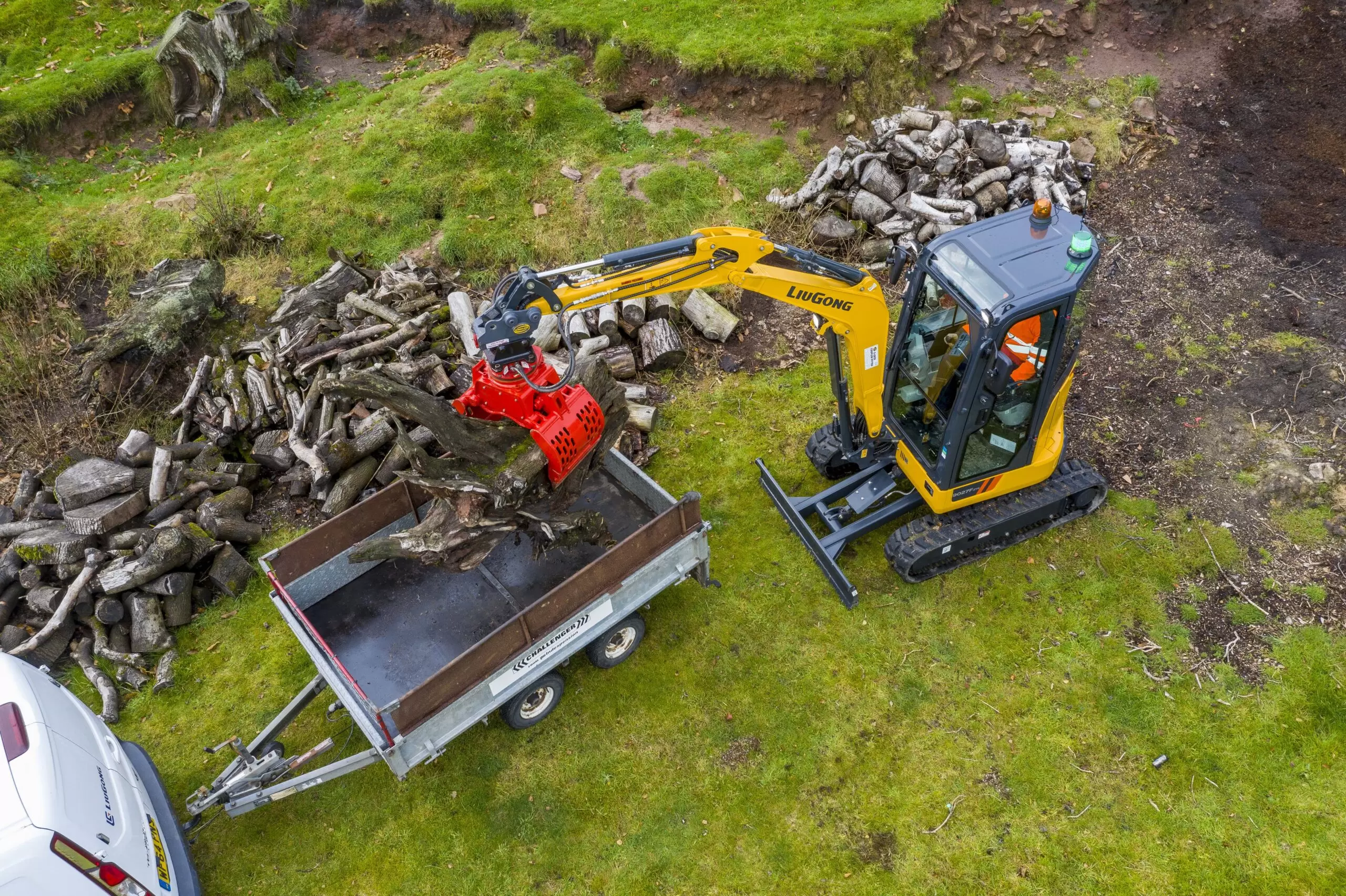

- Take a walk around the new 9027FZTS and you’ll see the difference. It’s a compact machine that contains all the essential requirements you look for in a mini excavator.
- When space is limited, the compact design, compact turning radius (0 turning radius), and boom articulation ensure good work and productivity. Thanks to the upper frame and counterweight rotating within the width of the tracks, the 9027FZTS can enter the tightest work sites without damaging the machine or surrounding environment. The boom articulation allows the 9027FZTS to offer even greater versatility by allowing it to dig next to walls. Simple one-button selection allows the boom to rotate 74 degrees to the left and 54.5 degrees to the right. Whatever the spatial challenge, the 9027FZTS takes it in stride.
- For greater efficiency, an intelligent function decreases or increases engine speed as needed, achieving higher levels of fuel efficiency without compromising performance. The space between the blade and bucket makes it faster to push, pick up, and load different materials.
- With a two-speed travel switch with automatic disconnection in the joystick, it has never been easier to control the travel speed. Simply click the switch to select the perfect speed or use the automatic kick-down to increase traction, allowing you to do the job faster.
Previous
Next
SPECIFICATION
Operating weight with cab
2750kg
Engine power
15,2 kW (20,4 hp) @ 2.500 rpm Líquido
Bucket capacity
0,05-0,1 m³
Maximum travel speed (High)
4,5 km/h
Maximum swing speed
9,5 rpm
Arm breakout force
12 kN
Bucket breakout force
20 kN
Shipping length
4160 mm
Shipping width
2490 mm
Shipping height
2440 mm
Track shoe width (std)
300 mm
Boom
2080 mm
Arm
1300 mm
Digging reach
4757 mm
Digging reach on ground
4648 mm
Digging depth
2857 mm
Vertical wall digging depth
2312 mm
Cutting height
4365 mm
Dumping height
3067 mm
Minimum front swing radius
1965 mm
Model
Yanmar 3TNV80F-SNLY
Emisión
Tier 4 / Estágio IIIA
System maximum flow
86.4 L/min
System pressure
21,6 MPa
